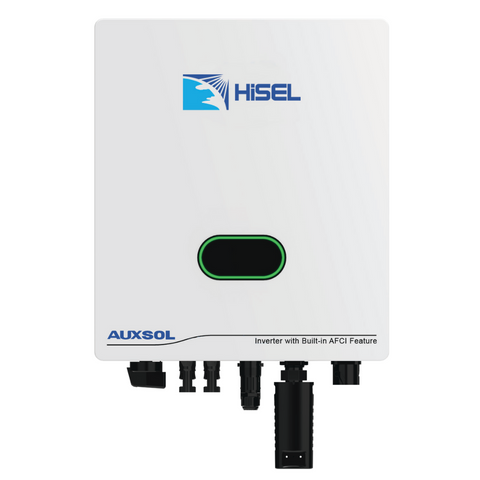

Hisel AUXSOL ASN-10TL-G2 10KW – PV 15KW Three Phase On-Grid Solar Inverter
Type: solar inverter
₨ 175,000
| 500 Sold
10 Year’s Replacement Warranty
Estimated Shipping Time: 48 to 72 Hours
You Have to Pay Full Payment in Advance for Order Confirmation
Full Advance Payment Required for Order Processing of Batteries, Inverters, And Structures.
Heavy weight parcels will be dispatch through Cargo Service
Customer will pay Cargo charges on delivery.
Quantity
ASN-10TL-G2 10KW Solar Inverter – High Efficiency & Smart Monitoring
The ASN-10TL-G2 is a high-performance grid-tied solar inverter designed to deliver up to 10KW output power. Equipped with advanced MPPT technology, it ensures maximum energy extraction from solar panels. With an impressive 98.60% max efficiency and 99.80% MPPT efficiency, this inverter is an excellent choice for both industrial and residential applications. RS485, Wi-Fi, and 4G communication options allow for remote monitoring and easy system management.
Key Features
- High Efficiency Performance – Delivers 98.60% max efficiency and 99.80% MPPT efficiency for maximum solar power utilization.
- Dual MPPT System – Features 140-1000V MPPT voltage range with 2 independent MPPT trackers, optimizing power output from multiple solar panel strings.
- Wide Grid Compatibility – Supports 220V / 380V / 230V / 400V (3-phase) grid voltage, making it adaptable for various regional standards.
- Smart Communication & Monitoring – Integrated RS485, Bluetooth, and optional WIFI & 4G connectivity for real-time monitoring and remote access.
- Robust Protection System – Equipped with DC reverse-polarity, short-circuit, surge protection, temperature protection, and anti-islanding protection to ensure safe operation.
- Natural Cooling Design – Features a transformer less structure with natural cooling to prevent overheating, ensuring long-term reliability.
- IP66 Waterproof Rating – Built to withstand harsh outdoor conditions, providing reliable performance in all environments.
- Anti-Backflow & AFCI Protection – Includes anti-backflow prevention and arc-fault circuit protection to maintain grid stability and enhance electrical safety.
ASN-10TL-G2 Solar Inverter – Technical Specifications
| Category | Specification |
|---|---|
| Input DC | |
| Max. Input Power | 15KW |
| Max. Input Voltage | 1100V |
| Rated Voltage | 620V |
| Start-up Voltage | 140V |
| MPPT Voltage Range | 140 – 1000V |
| Max. Input Current | 20A / 20A |
| Max. Short Circuit Current | 25A / 25A |
| MPPT Number | 2 |
| Max. Input Strings Number | 2 |
| Output AC | |
| Rated Output Power | 10KW |
| Max. Output Power | 11KW |
| Rated Grid Voltage | 220V / 380V / 230V / 400V (3/N/PE) |
| Grid Voltage Range | 170V – 280V (Phase voltage), 320V – 480V (Line voltage) |
| Rated Grid Frequency | 50Hz / 60Hz |
| Rated Grid Output Current | 14.4A |
| Max. Output Current | 15.9A |
| Power Factor | 1 (0.8 leading, 0.8 lagging) |
| THD (Total Harmonic Distortion) | <3% |
| Efficiency | |
| Max. Efficiency | 98.60% |
| EU Efficiency | 98.30% |
| MPPT Efficiency | 99.80% |
| Protection | |
| Integrated DC Switch | Yes |
| DC Reverse-Polarity Protection | Yes |
| Anti-Islanding Protection | Yes |
| Short Circuit Protection | Yes |
| Output Over Current Protection | Yes |
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| Insulation Impedance Detection | Yes |
| Ground Fault Monitoring | Yes |
| Residual Leakage Current Detection | Yes |
| Temperature Protection | Yes |
| AC Over Voltage Protection | Yes |
| DC Over Current Protection | Yes |
| Integrated AFCI (DC Arc-Fault Circuit Protection) | Yes |
| Anti-Backflow Protection | Yes |
| Strings Monitoring | Yes |
| I/V Curve Scanning | Optional |
| General Data | |
| Dimensions (WHD) | 339 × 394 × 175.5mm |
| Weight | 13Kg |
| Self-Consumption (Night) | <1W |
| Operating Temperature Range | -30°C to +60°C |
| Cooling Concept | Natural Cooling |
| Max. Operation Altitude | 4000m (Derating above 3000m) |
| Relative Humidity | 0-100% |
| Ingress Protection | IP66 |
| Topology Structure | Transformer less |
| Grid Connection Standard | IEC/EN 62109-1/2, EN IEC 61000-6-1/2/3/4, EN IEC 61000-3-11, EN 61000-3-12 |
| Safety/EMC Standard | NB/T32004, EN 50549-1, CGC/GF 035-2013, VDE-AR-N 4105 |
| Type of DC Terminal | MC4 Connector |
| Type of AC Terminal | Quick Connection Plug |
| Display & Communication | |
| Display | LED + Bluetooth + APP |
| Communication Interface | RS485, Optional: WIFI/4G |
The ASN-10TL-G2 is a smart, efficient, and reliable inverter, making it an ideal solution for residential and commercial solar power systems, ensuring long-term durability with advanced monitoring capabilities.
